24 VAC Power Supply HVAC Thermostat For Air Conditioning System

Brand Name : OEM

Model Number : STN701

Certification : CE/UL

Place of Origin : Guangdong

MOQ : 100 PCS

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, /Paypal

Supply Ability : 100000 pieces/month

Delivery Time : 1-45 days

Packaging Details : Standard box

Name : Thermostat

Programmability : Non-Programmable

Voltage : 24V or battery

Usage : Household & Industry,Indoor,HAVC System

Shape : Square

Size : 12x 9.8 x 2.8 CM

Commodity weight : 227 g

Display : 4.5 SQ inch

Material : Plastic

Certificate : CE/UL

Contact Now

24 VAC Power Supply HVAC Thermostat For Air Conditioning System

ISO certifications .pdf

S701 Instruction.pdf

Product Description :

This thermostat is compatible with single-stage heating/cooling systems for heating and cooling. Can't flush

heat with electric skirting board (120 – 240 V) Heat pump system backup or multi-stage heating/cooling.

Warranty information with suit this non-programmable thermostat for one years warranty.

Terminal Designations:

RH------- ----24VAC (system power supply) HEAT=RH TO W

RC------------COOL= RC to Y FAN=RC TO G

C--------------Common24VAC (system power supply)

W------------- HEAT

Y-------------- COOL

G---------------FAN

B---------------REV VALVE HEAT

O---------------REV VALVE COOL

Specifications:

Model :STN701

Single stage--1 heat, 1 cool

Non-programmable

4.5 sq. inch display

2*AAA 1.5V Alkaline batteries power

Display temperature range ......................32℉ to 99℉ (1℃ to 40℃)

Setpoint Range.........................................44℉ to 90℉ (7℃ to 32℃)

Load rating.............................................. 1.0Amp per terminal, 1.5Amp maximum all terminals combined

Display accuracy......................................±1℉(under 68℉)

Power source.......................................... 24 VAC(18 to 30 VAC), 50/60 Hz for hardwire (common wire)

Low battery indicator................................Under 2.7 V (without 24V power supply)

Backlight...................................................Blue, light on for 15 seconds

Dimensions of thermostat........................120 x 98 x 28 MM

Technical Parameters:

Easy to use battery

Electric or gas configurable

Independent B & O terminal block

Independent heating and cooling swing cycle rate adjustment

Indoor temperature correction adjustment

5 minutes compressor delay Protection selectable to turn on or off

Convenient wire color terminal block Buildings

Terminal Designations:RH, RC,C,W,Y, G, B, O

Universal sub-base

Can be mounted to wall or junction box

Battery Or 24 VAC power supply

Package Including:

STN701 thermostat - 1pcs

Color box - 1pcs

Screws and anchor - 2pcs

User manual - 1pcs

24 VAC Power Supply HVAC Thermostat For Air Conditioning System

Product Tags:

heat only programmable thermostat

air conditioning thermostats

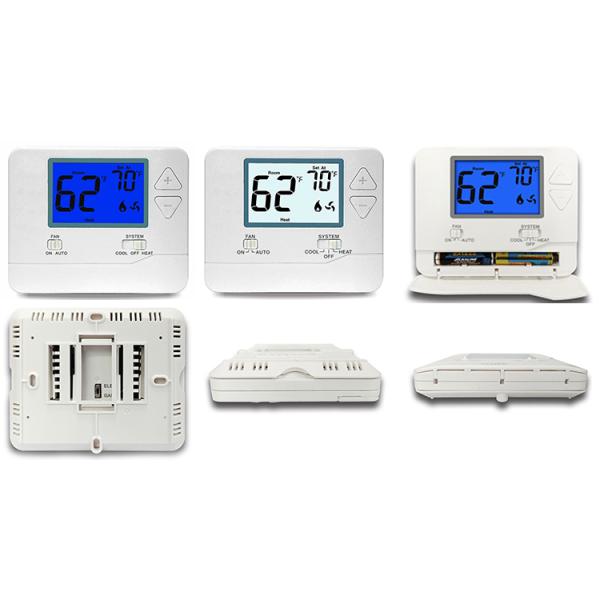

24 VAC Power Supply HVAC Thermostat For Air Conditioning System Images
